Ultrasonic Humidifiers

Products | Ultrasonic Humidifiers

The Oscillator which installed into the bottom of water reservoir vibrates the water at high frequency wave and sprays the generated mist.
Ultrasonic humidifier has high ability to keep the low temperature because it takes away the latent heat when mist evaporates.
Not only humidifies the room, but also reduce the room temperature which reducing load of refrigerating equipment and economizes the running cost as a result.
UCAN ultrasonic humidifier comes with germicidal device to realize the hygiene humidification.
We have a large number of products line up to meet the various applications. Please see the product list if you want to see all of them.

Ultrasonic humidifier FT-S UVSV series Green Mister

Ultrasonic humidifier for open showcase and salad bar of green goods and raw fishes.
It supplies ample mist to every corner of the showcases to keep freshness and reduces distress goods.

Details

Ultrasonic humidifier FT-F UVSV series

Ultrasonic humidifier deals with wide range applications from backyard in supermarket to large-scaled refrigerated storage. It keeps freshness and asset value from moisture loss caused by operating refrigerator. Also suitable for printed factory and mushroom growing facility.

Details

Ultrasonic humidifier FT-N UVSV series

Ultrasonic humidifier for small space 3 to 9.0 m2.

Details

Ultrasonic humidifier FT-40FSC1UV

Ideal model for flat type open showcase and ice-filled show case.

Details

Ultrasonic humidifier FT-WUVSV series

Wall-mounted type ultrasonic humidifier that can be used for industry as well as human A/C.

Details

Ultrasonic humidifier　FT-P/PD UVSV series

Ultrasonic humidifier designed to build into air-conditioning units like Air handing unit and in duct.

Details

Ultrasonic humidifier FT-SN UVSV series

Ultrasonic humidifier for small type open showcase.

Details

Ultrasonic humidifier FT-C UVSV series

Ultrasonic humidifier for humidifying through partition.

Details

Ultrasonic humidifier FT-M43 Kiripet booster

Portable type ultrasonic humidifier.

Details

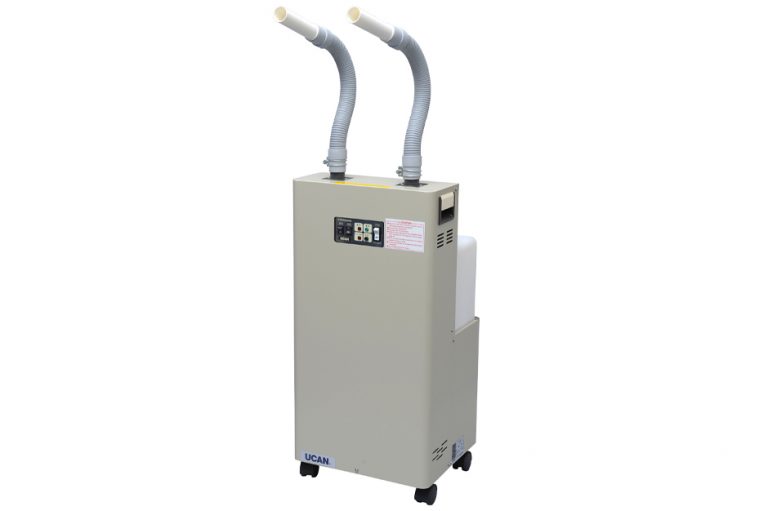

Ultrasonic humidifier FT-M20UV

Portable type ultrasonic humidifier with flexible nozzles.

Details

Germicidal Device for Ultrasonic Humidifier

Best suited for HACCP * System in food factory. * HACCP = Hazard Analysis (and) Critical Control

This system is consist of an immersion-type UV lamp (UV) which is mounted inside the water reservoir of a humidifier and drainage solenoid valve (SV) which are the standard accessories for export models.
If requires to drain old water periodically and supply fresh water as regular water management system, the optional control timer is available effectively.

Features

· The germicidal ray radiated by this UV lamp kills various kinds of bacteria and viruses by effecting directly on the DNA’s and RNA’s that control their genes. Since no chemical substance is used in the sterilization, the mist has no effect on human body. UV lamps runs out or the radiation ability declines to 70%, the operation stops automatically and send the signal externally. UV lamps can be replaced easily without tool. Drainage solenoid value (SV) drains the water reservoir to empty automatically whenever the power supply is shut off.

While operation, the timer* integrated in the trans. box or individual type works to open or close the solenoid valve periodically to drain and supply the fresh water (*timer is option).

· UV lamp’s disinfecting ray works effectively against any kind of microbes.

· The water reservoir equipped with UV lamps is made of stainless steel with a high reflecting efficiency, which helps raise the disinfecting effect.

· UV lamps are mounted at even intervals to ensure the uniformity of irradiation. While the humidifier is in operation, the water inside the water reservoir flows rapidly around the outer tube (quartz glass tube) due to the cavitation created by ultrasonic waves. It helps raise the efficiency of irradiation of disinfecting ray.

· Replacement of the expired lamps is made easy as it is designed for simple insertion.

· Whenever the power supply is shut off, drainage solenoid value (SV) drains automatically the water reservoir to empty. It humidifies with fresh water. In operation the water is drained and supplied regularly.
