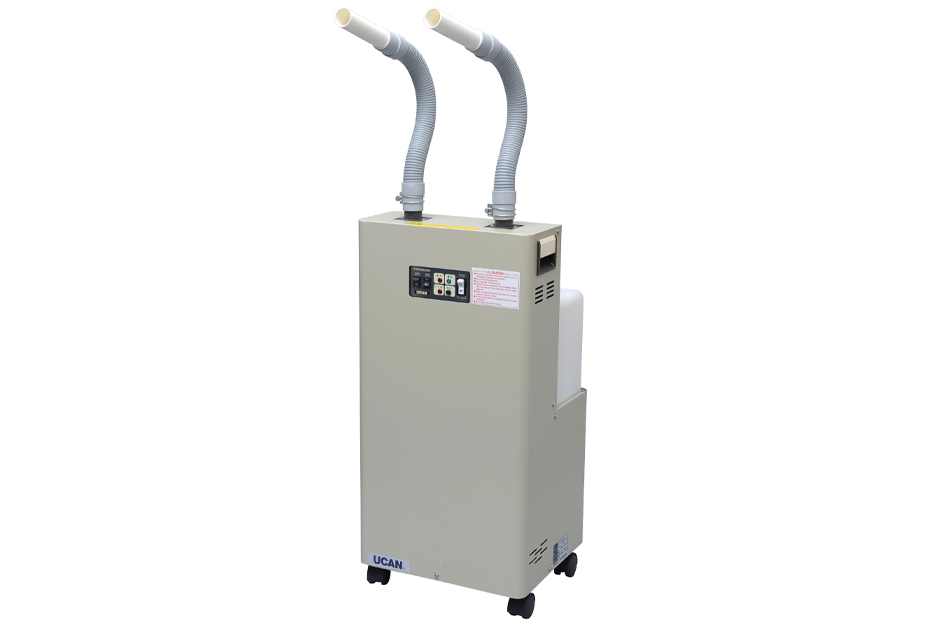

Ultrasonic humidifier FT-M20UV
Portable type ultrasonic humidifier with flexible nozzles.
Features
- Equipped with wheels allowing easy movement.
- Water is supplied by water tank (13L x 1 pcs).
- Flexible nozzles hoses spray the mist in any targeted direction.
- Comes with the germicidal device by UV lamp to enhance the hygiene humidification.
| Model FT- UV | M20 |
|---|
| Humidity capacity (l/h) | 1.0 |
|---|
| Power supply (50/60Hz) | 1φ2W AC230V * (Other power supply types are available on request) |
|---|
| Power Consumption (VA) | 266 |
|---|
| No. of oscillator (pcs) | 4 |
|---|
| Air volume (m3/min) | 0.5 / 0.6 (50/60 Hz) |
|---|
| Operating Weight （kg) | 61 |
|---|
| Water supply system | Water is supplied through polyethylene type water tank. |
|---|
| Water tank capacity | 13 L x 1 pcs |
|---|
| Control system | On/Off control |
|---|
| Water quality | Tap water, Purified water or R.O. treated water (1…20 μS/cm) We recommend purified water to prevent white powder from producing. |
|---|
| Ambient condition | 5…40℃ MAX.85%RH (No freezing, No condensation) |
|---|
| Replacement of Oscillator | At about 5,000 cumulative hours of operation |
|---|
| Replacement of UV lamp | At about 10,000 cumulative hours of operation |
|---|
| Safety equipment | Circuit breaker to prevent overcurrent
Device to prevent waterless operation,
Thermostat to prevent water overheating (cutoff at 55℃), Surge filter |
|---|
| Option | Timer | Mist volume controller | Proportional control | Duct hose |
|---|
| 〇 | 〇 | | 〇 |
| Portable water supply system | Moisture protection for PCBs | Anti-freezing heater | |
| × | 〇 | × | |
Catalogue Download
For general catalogue and product brochure, please download here.
