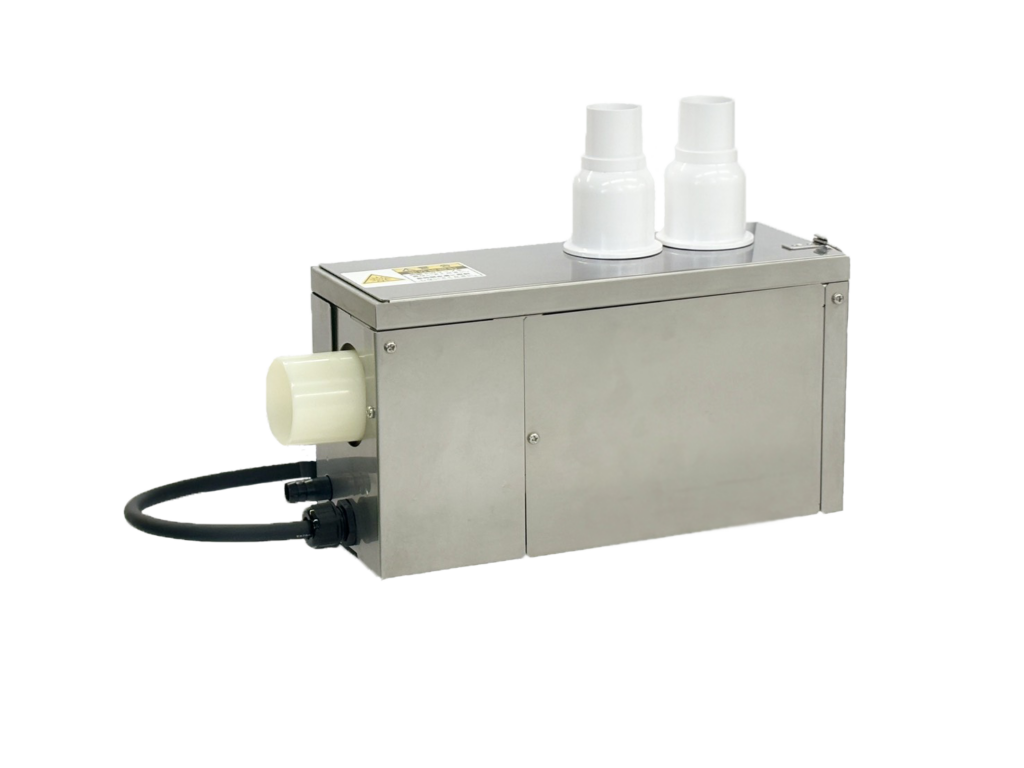

Ultrasonic humidifier DFT-N series

Products | Ultrasonic Humidifiers DC type| Ultrasonic Humidifiers

Ultrasonic humidifier for small space 3 to 9.0 m2.

The compact design allows it to be installed in tight space and can be used for a variety of purposes, such as for small size refrigerated storage and built-into-equipment.
Equipped with drainage mechanism. Even sucks misty air and sweats around the fan, it drains externally. This precludes any effects on the electrical parts from condensation.
It can be installed either inside of the host equipment or outside with optional brackets.
Comes with the germicidal device by UV lamp and drainage solenoid valve to enhance the hygiene humidification. Further optional timer is available for regular drainage system.
Proportional control is available by changing the operation signal. It controls the humdifying operation lineally.

Model DFT- UVMV	N010	N020	N030
Humidity capacity (l/h)	0.5	1.0	1.5
Power supply (50/60Hz)	AC100 ... 240V
Power Consumption (VA)	41	67	95
No. of transducer (pcs)	1	2	3
Air volume (m3/h)	6.5
Unit weight（kg)	3.3	3.6	4.3
Power unit weight（kg)	1.8
Water supply system	Automatic water supply system by float switch and water supply solenoid valve
Water quality	Tap water, Purified water or R.O. treated water (1…20 μS/cm) We recommend purified water to prevent white powder from producing.
Water supply pressure	0.03…0.5 MPa (0.3…5.0 kgf / cm2)
Control system	On/Off control , Proportional control
Ambient condition	5…40℃ MAX.90%RH (No freezing, No condensation)
Replacement of oscillator	At about 5,000 cumulative hours of operation
Replacement of UV lamp	At about 10,000 cumulative hours of operation
Safety equipment	Device to prevent waterless operation, Fuse to prevent overcurrent, Thermostat to prevent water overheating (cutoff at 80℃), Surge filter

Option	Timer	Mist volume controller	Duct hose
	〇	〇	〇
	Portable water supply system	Moisture protection for PCBs	Anti-freezing heater
	△	〇	×
