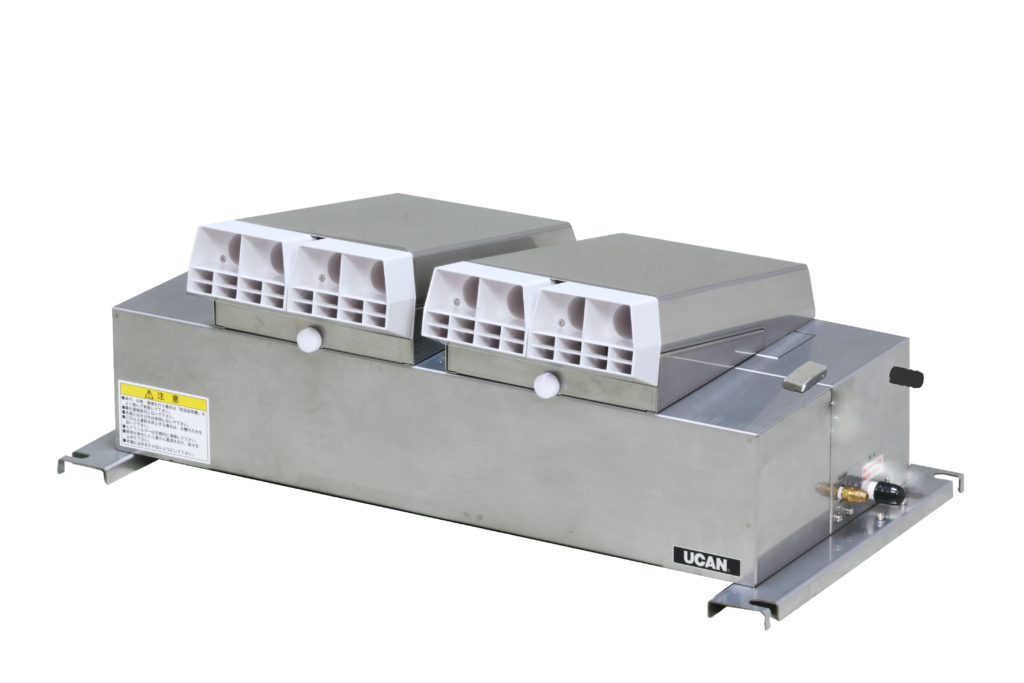

Ultrasonic humidifier DFT-F series

Products | Ultrasonic Humidifiers DC type| Ultrasonic Humidifiers

Ultrasonic humidifier DFT-F series

It deals with wide range applications from backyard in supermarket to large-scaled refrigerated storage.
Keeps freshness and assets value from moisture-loss caused by operating refrigerator. Also suitable for printed factory and mushroom growing facility, etc .

Features

Best fitted for humidifying directly cold rooms and areas with heat sources.
New DFT-F series has the upgrated performance and the enhanced energy efficiency.

Powerful drip-proof air blower to blow fine mist far away and humidifies the entire interior.
Proportional control is available by changing the operation signal. It controls the humdifying operation lineally.
Main unit can be dismantled without any tool, so easy to clean the water reservoir and air filter.
Comes with the germicidal device by UV lamp and drainage motor valve to enhance the hygiene humidification. For regular drain system, optional timer is available.
Various options to meet special issues. EX: anti-freezing, moisture-resistant in high humidity environment, proportional control system, low temperature room for rice, etc.

Model DFT- UVMV	F040	F080	F120	F160	F200	F240
Humidity capacity (l/h)	2.0	4.0	6.0	8.0	10.0	12.0
Power supply (50/60Hz)	AC100V ... 240V
Power Consumption (VA)	122	248	356	472	598	716
No. of oscillator (pcs)	4	8	12	16	20	24
Air volume (m3/h)	24	48	72	96	120	148
Unit weight（kg)	6.8	10.0	13.2	16.5	19.7	22.6
Power unit weight（kg)	1.8	3.0	4.0	4.0	5.2	5.2
Water supply system	Automatic water supply system by float switch and water supply solenoid valve
Water quality	Tap water, Purified water or R.O. treated water (1…20 μS/cm) We recommend purified water to prevent white powder from producing.
Water supply pressure	0.03…0.5 MPa (0.3…5.0 kgf / cm2)
Control system	On/Off control , Proportional control
Ambient condition	5…40℃ MAX.90%RH (No freezing, No condensation)
Replacement of oscillator	At about 5,000 cumulative hours of operation
Replacement of UV lamp	At about 10,000 cumulative hours of operation
Safety equipment	Device to prevent waterless operation, Fuse to prevent overcurrent, Thermostat to prevent water overheating (cutoff at 80℃), Surge filter

Option	Timer	Mist volume controller	Fan full-time operation	Duct hose
〇	〇	〇	〇
Portable water supply system	Moisture protection for PCBs	Anti-freezing heater	Fan volume controller
×	〇	〇	〇

Notice of end of series support

The former model FT-F series will be discontined once the factory stock is runned out.
